Lightweight Aluminium Hand Stacker Truck- Wide Legs
Lightweight Aluminium Hand Stacker Truck – Wide Legs
The Lightweight Aluminium Hand Stacker Truck with Wide Legs is designed for businesses that need a compact, portable and easy-to-use manual lifting solution with a wider base-leg stance than the standard model. With a 181kg lifting capacity, 2.5m maximum fork height and lightweight 66kg aluminium construction, it is a practical choice for lighter-duty lifting tasks in workshops, warehouses, stockrooms, vans and back-of-house handling areas.
As part of our wider range of stacker trucks, this model is especially useful where operators need controlled vertical lifting without the size, weight or cost of a powered stacker. It also sits within our wider material handling equipment range, making it a strong option for businesses looking to improve day-to-day load handling without overcomplicating the process.
Wide-Leg Design for Added Practicality
The main difference between this model and the standard aluminium hand stacker is its wide base-leg design. With a maximum base-leg width of 1100mm, this version provides a wider stance for suitable handling tasks where a narrow-base stacker may not be the best fit.
This makes it useful for handling lighter goods, crates, cartons, components and packaged loads where operators need additional base-leg width while still keeping the benefits of a lightweight manual stacker.
181kg Capacity and 2.5m Lift Height
This wide-leg aluminium hand stacker has a 181kg lifting capacity and 254mm load centre, making it suitable for lighter workplace lifting and positioning tasks. The 570mm fork length gives operators a practical platform for handling suitable loads, while the 50mm minimum fork height helps with low-level load entry.
The 2.5m maximum fork height gives this stacker useful reach for lifting goods onto benches, racking, shelving, mezzanine areas and vehicles. For businesses that need controlled lifting height without moving into powered equipment, this model offers a good balance of reach, weight and manoeuvrability.
Lightweight Aluminium Construction
At just 66kg net weight, this stacker is much easier to move and transport than many heavier steel alternatives. The aluminium construction keeps the unit light while still offering the strength required for its rated working capacity.
This makes it particularly useful for mobile engineers, delivery teams, maintenance teams, workshops, warehouses and businesses that need a stacker which can be moved between areas or transported when required.

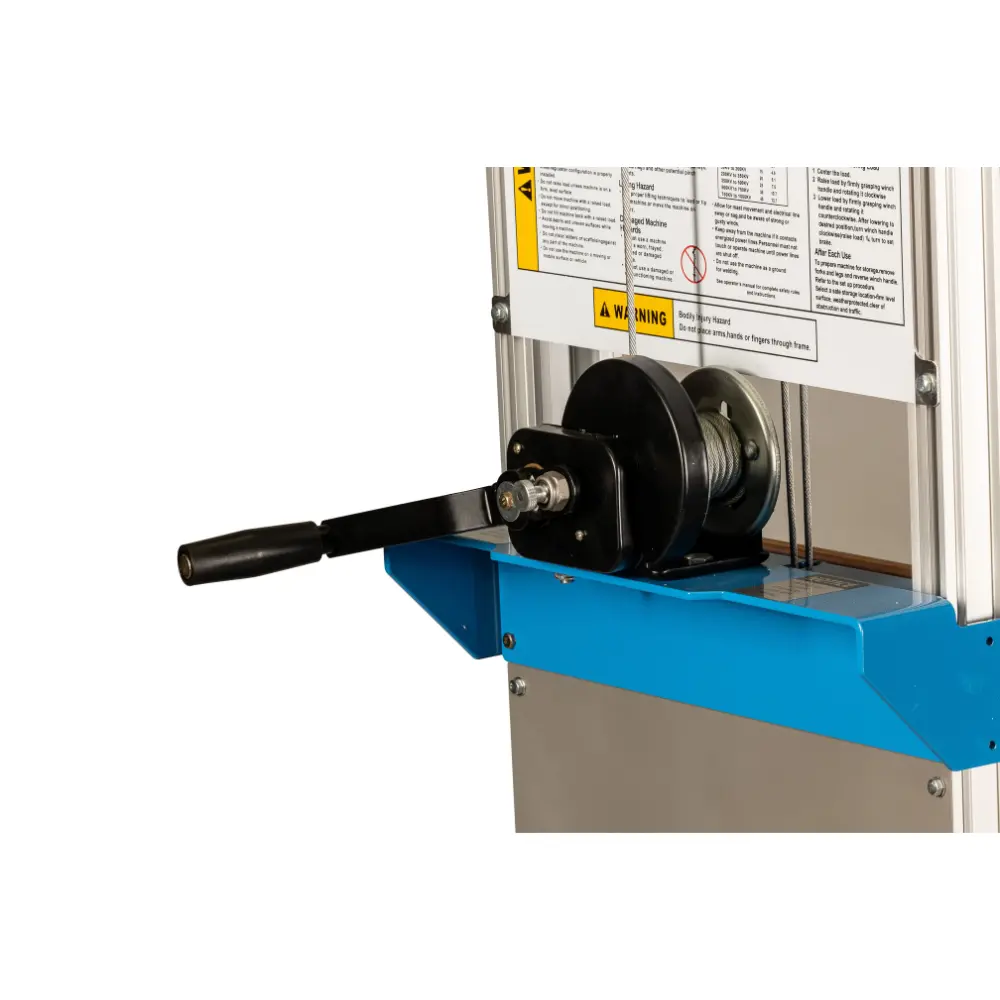

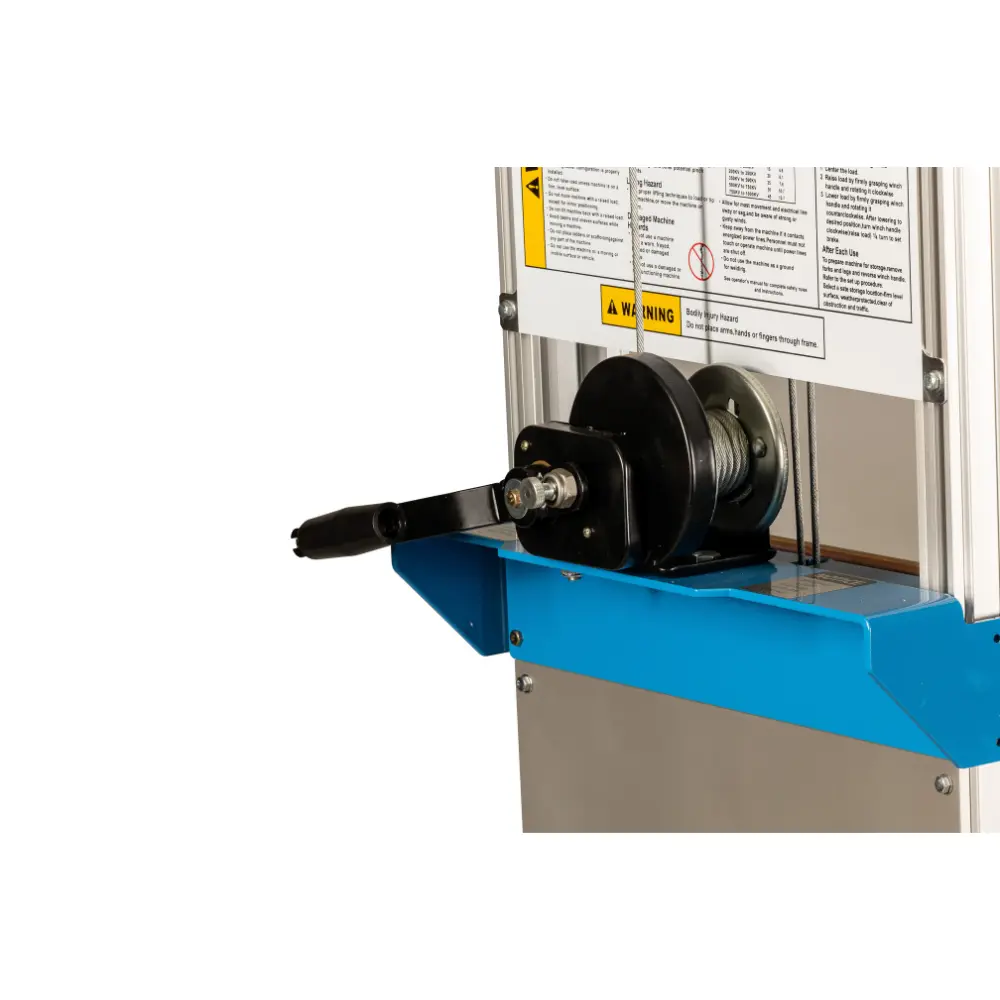

Manual Cable Winch Operation
The stacker is operated using a cable type wire rope winch system, giving the user controlled lifting and lowering without the need for batteries, chargers or a mains power supply. This makes it a simple and dependable option for occasional or moderate-use lifting tasks.
Because it is manually operated, it is also easy to keep ready for use. There is no charging schedule to manage, no battery downtime and no powered drive system to maintain, making it a straightforward choice for many everyday handling environments.
Built-In Brakes and Trolley Function
The larger rear wheels are fitted with built-in brakes to help prevent the stacker from rolling away when positioned. This is especially useful when lifting or positioning loads in busy work areas where control and stability matter.
The design can also double up as a trolley, allowing suitable loads to be transported around site as well as lifted. This makes it a versatile handling aid for businesses that want one compact unit for lifting, positioning and moving lighter goods.
Choosing Between the Standard and Wide-Leg Aluminium Stacker
This wide-leg model is best suited to applications where the extra base-leg width is useful. If you need a more compact option for tighter working areas, you may also want to compare it with the standard Lightweight Aluminium Hand Stacker Truck.
For heavier lifting, higher-volume handling or different load types, browse our full range of stacker trucks. If you mainly need to move palletised loads at floor level, our pallet trucks may be a better fit.
Conforms to EN 1757-1
This Lightweight Aluminium Hand Stacker Truck with Wide Legs conforms to EN 1757-1, the relevant standard for manually operated industrial trucks. It is also supplied with a 5 year warranty, giving buyers confidence that the product is suitable for professional workplace use.
